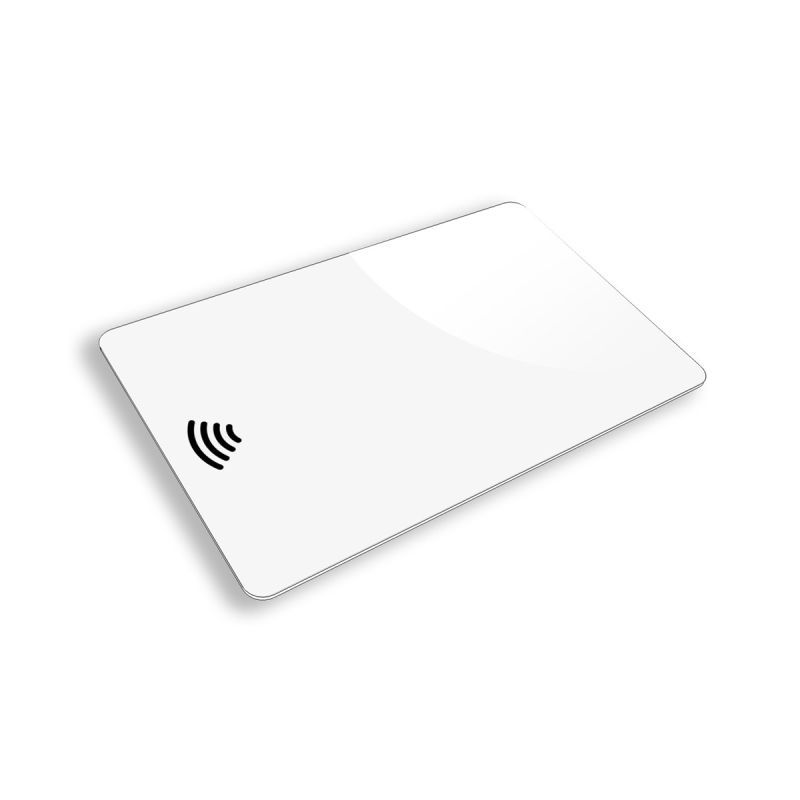

ATC4096 cards are contactless cards operating in HF at 13.56 MHz. They comply with the ISO 14443 A standard, which defines the operation of cards used for electronic ticketing, access control, identification and payment systems.
Equipped with a dynamically segmented memory of 4096 bytes and a unique identifier, these cards can hold as many as 127 applications on a single chip. Their operating distance (read/write) is 10 cm.
ATC4096 cards offer high security standards. Indeed, the chip protects stored data using four different cryptographic keys (128/256-bit AES, 3DES, DES or Legic).
They are ideal for all applications concerning access control, attendance control, payments and ticketing.
ATC4096 cards are available in three different materials (PVC, PETG and wood) in the following sizes: 86 mm x 54 mm x 0.86 mm for PVC and PETG, 86 mm x 54 mm x 1.3 mm for wood.
RFID Chip ATC4096-MP311
Chip frequency 13.56 MHz
Memory 4096 bytes
UID 7 bytes
ISO standard 14443 A
NFC standard To be verified depending on the reading device
