WhiteIP vehicle-mount RFID

Home RFID Readers White IP WhiteIP vehicle-mount RFID

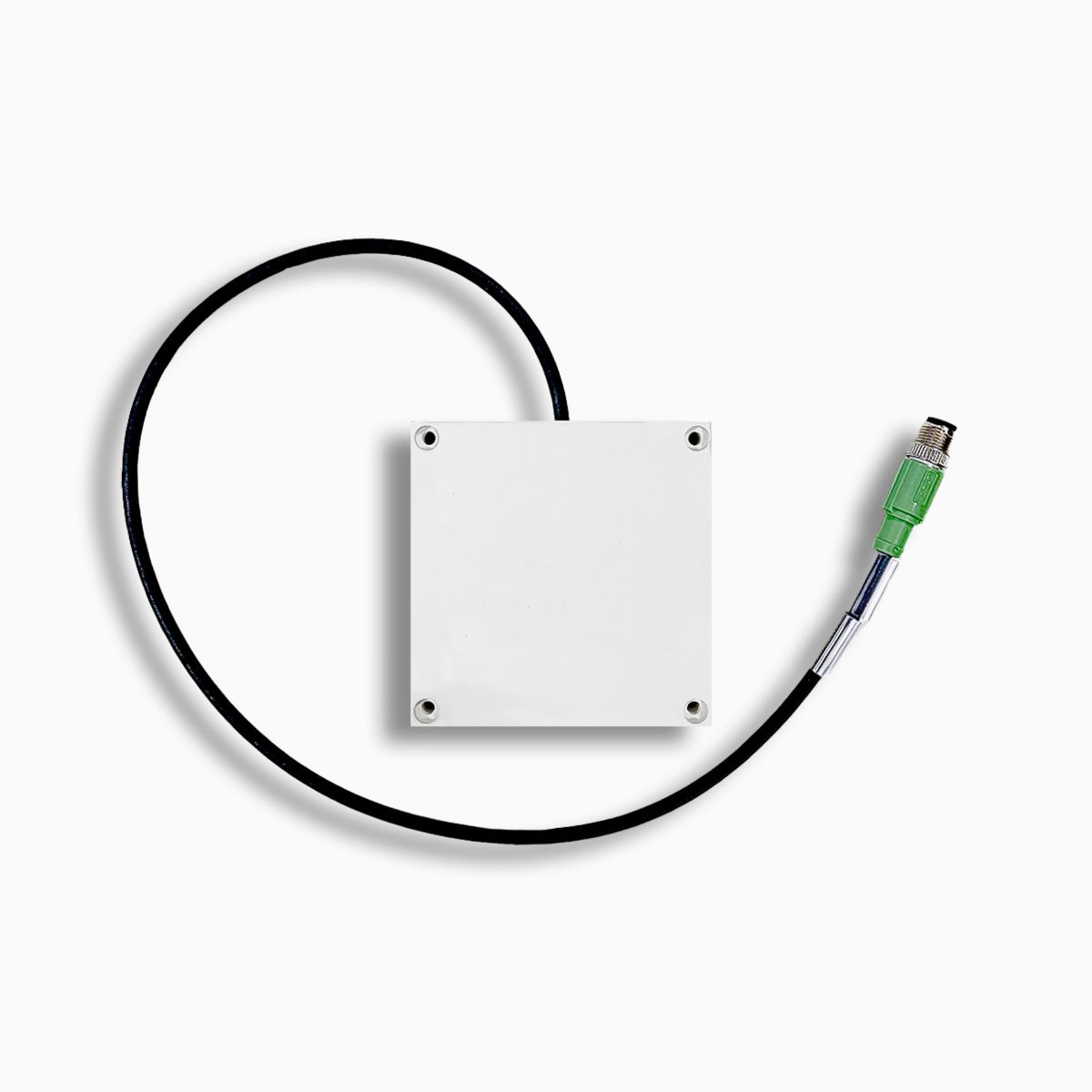

The WhiteIP vehicle-mount RFID reader is the IP67-certified, water- and dust-resistant, low-power, stand-alone solution. In particular, it simplifies automatic tracking operations in dirty outdoor settings. It is resistant to impacts and vibrations.

With its high sensitivity antenna, the WhiteIP RFID reader is suitable for reading and writing passive UHF tags up to a distance of 1 metre. In addition, it is available with RS232 or RS485 connectivity, and its user interface has a buzzer.

Technical specifications
Frequency Europe: 865.7 ÷ 867.5 USA 902.75 ÷ 927.25
Standard protocol ISO 18000 – 6 A/B/C EPC Class 1 Gen 2
RF Power 100mW
Reading distance Up to 1 m
Connectivity RS232, RS485
Dimensions 97 mm x 97 mm x 30 mm
Power supply 12÷24V
Other features IP67 and resistance to vibrations
Waste managementWaste management LogisticsLogistics Waste collectionWaste collection Work safetyWork safety

Easy to install, the WhiteIP vehicle-mount RFID reader is ideal for applications on vehicles or work equipment: in waste management during door-to-door collection; in logistics on trolleys for identifying pallet positions and traceability; on delivery vehicles; or on bulldozers to monitor workplace safety.
