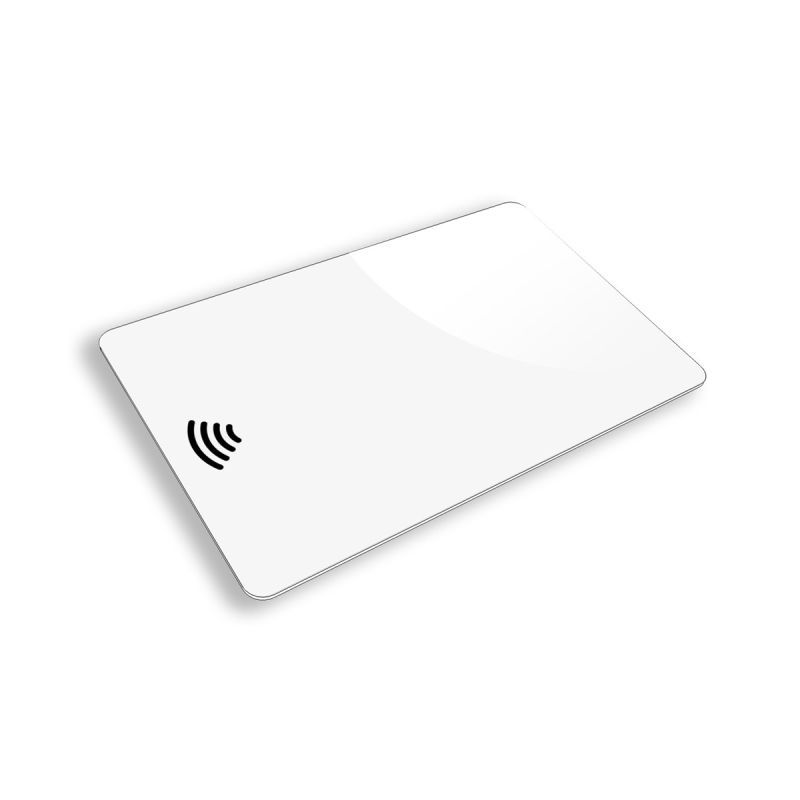

FM11RF08 Cards

FM11RF08 cards are contactless RFID cards operating in HF at 13.56 MHz. They transmit data in read/writemode and comply with standard ISO 14443 A. With regard to security, these cards guarantee excellent performance. Indeed, they require three-step authentication before the read/write operation.

RFID FM11RF08 cards have an anti-collision feature, which allows multiple cards to be used simultaneously in the same magnetic field. They can be read up to a distance of 10 cm, depending on the antenna geometry, reader, environment and type of application.

They are used for ticketing in public transport and for other similar applications.FM11RF08 cards are available in three different materials (PVC, PETG and wood), in the following sizes: 86 mm x 54 mm x 0.86 mm for PVC and PETG, 86 mm x 54 mm x 1.3 mm for wood.


RFID Chips FM11RF08

Chip frequency 13.56 MHz

Memory 1024 bytes

UID 4 bytes

Manufacturer Shanghai Fudan Microelectronics

ISO standard 14443 A

NFC standard To be verified depending on the reading device




Mifare Classic 1K EV1 S50

Mifare Classic 4K EV1 S70

Mifare Plus 2K

Mifare Plus 4K

Mifare Plus X 2K

Mifare Plus X 4K

Mifare Plus 2K EV2

Mifare Plus 4K EV2

Mifare Plus SE

Mifare Desfire Light
