HT023 hard tags

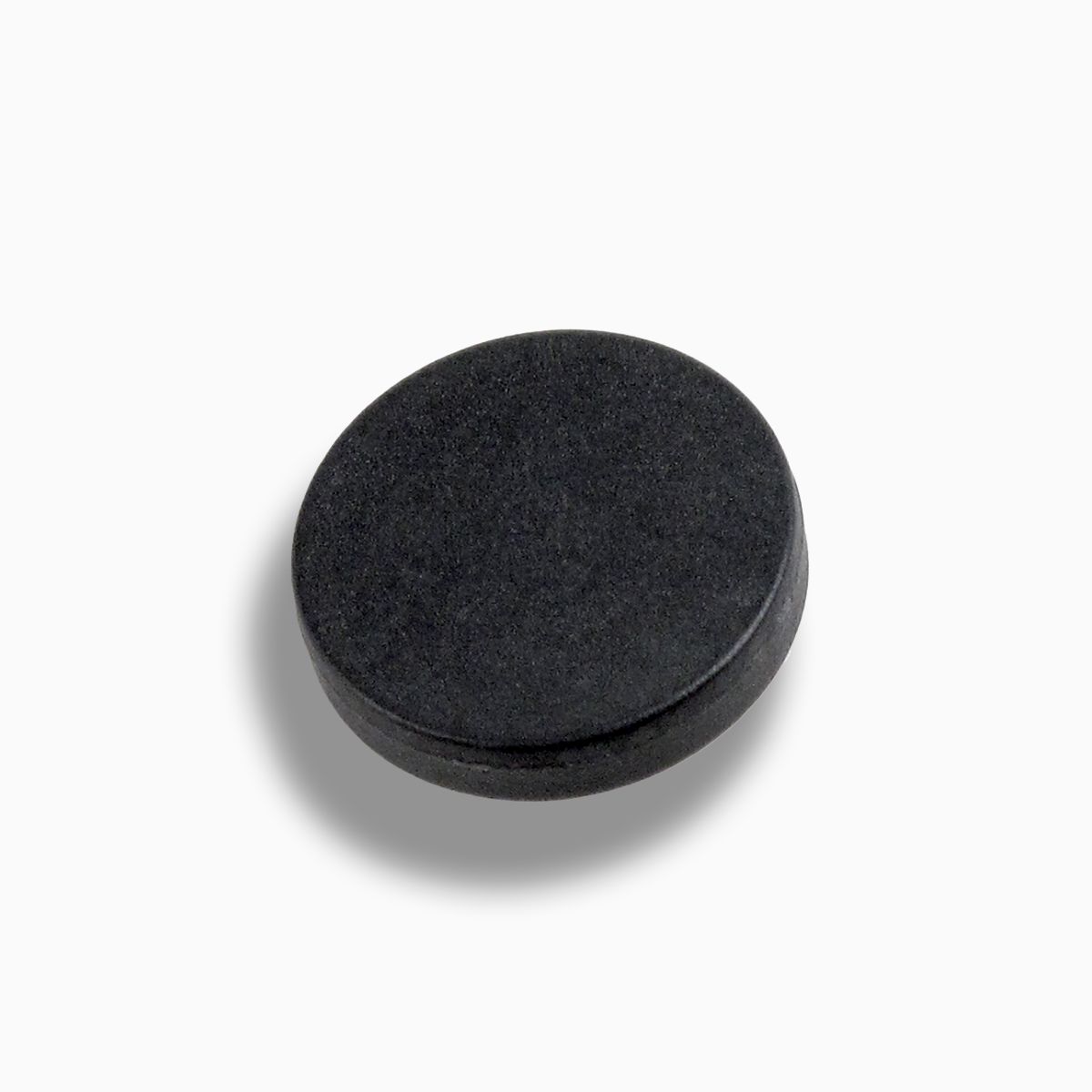

HT023 is a ‘button tag’ — it resembles a button — made of nylon, an ultra light material that is resistant to wear, tensile stress and chemicals, as well as mould and bacteria.
Round, very small and very light — with a diameter of 10 mm, it is 1.9 mm thick and weighs only 0.3 grams! — HT023 is designed for application in small spaces on non-metal objects using an adhesive backing. Available in black in HF with the ICODE SLIX chip, a logo can be applied to the button tag using pad and laser printing, while numbering is always applied using laser technology.
| Where to apply | Non-metal surfaces |
|---|---|
| IP Rating | 68 |
| Material | PA6 (Nylon) |
| Dimensions | ø 10 mm, h 1.9 mm |
| Weight | 0.3 g |
| Application method | adhesive |
| Colours | black |
| Temperature | Operation -40°C ∼ +85°C / Storage -40°C ∼ +90°C |
| Type of printing | pad and laser printing |
| Type of numbering | laser technology |
Industry
Logistics
With an IP68 rating, it is resistant to dust and strong jets of water. It is the ideal choice for asset management, for identifying products even when exposed to harsh conditions, particularly when small surfaces are involved.
