Complete Chip Guide
close
Complete Chip Guide
LF_frequency 125 KHz
| CHIP | DESCRIPTION |
| EM4100 or GK4100 | Memory: 0 bytes - UID: 8 bytes |
| EM4102 | Memory: 0 bytes - UID: 8 bytes |
| EM4200 | Memory: 0 bytes - UID: 8 bytes |
| EM4550 or TITAN | Memory: 128 bytes - UID: 8 bytes |
| EM4305 | Memory: 64 bytes - UID: 4 bytes |
| ATA5577 or T5567 | Memory: 36 bytes - UID: 8 bytes |
| Q5 or 5555 | Memory: 33 bytes - UID: 8 bytes |
| HITAG1 | Memory: 256 bytes |
| HITAG2 | Memory: 32 bytes |
| HITAG S 2048 | Memory: 256 bytes - UID: 4 bytes |
| HITAG S 256 | Memory: 32 bytes - UID: 4 bytes |
| SIC279 | Memory: 16 bytes/ 24 bytes |
| S5777 | Memory: Total 330-bit EEPROM: 10 blocks of (32 bits+ 1 lock bit), 1 × 32 bit configuration, 7× 32 bits user memory |
HF_frequency 13.56 MHz
| CHIP | DESCRIPTION |
| RF81 | Memory: 1024 bytes - UID: 4 bytes |
| FM11RF08 | Memory: 1024 bytes - UID: 4 bytes |
| RF005 | Memory: 64 bytes - UID: 7 bytes |
| RF32 | Memory: 4096 bytes - UID: 4 bytes |
| MIFARE CLASSIC 1K EV1 S50 | Memory: 1024 bytes - UID: 4 bytes |
| MIFARE CLASSIC 1K EV1 S50 - 7 bytes | Memory: 1024 bytes - UID: 4 bytes |
| MIFARE CLASSIC 4K EV1 S70 | Memory: 4096 bytes - UID: 4 bytes |
| MIFARE ULTRALIGHT EV1-1 | Memory: 48 bytes - UID: 7 bytes |
| MIFARE ULTRALIGHT EV1-2 | Memory: 128 bytes - UID: 7 bytes |
| MIFARE ULTRALIGHT C | Memory: 144 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV1 2K | Memory: 8192 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV1 4K | Memory: 8192 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV1 8K | Memory: 8192 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV2 2K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV2 4K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV2 8K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV3 2K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV3 4K | Memory: 4096 bytes - UID: 7 bytes |
| MIFARE DESFIRE EV3 8K | Memory: 8192 bytes - UID: 7 bytes |
| MIFARE DESFIRE LIGHT | Memory: 640 bytes - UID: 7 bytes |
| MIFARE PLUS SE | Memory: 1024 bytes - UID: 7 bytes |
| MIFARE PLUS 2K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE PLUS 4K | Memory: 4096 bytes - UID: 7 bytes |
| MIFARE PLUS X 2K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE PLUS X 4K | Memory: 4096 bytes - UID: 7 bytes |
| MIFARE PLUS EV2 2K | Memory: 2048 bytes - UID: 7 bytes |
| MIFARE PLUS EV2 4K | Memory: 4096 bytes - UID: 7 bytes |
| ATC1024-MV110 | Memory: 944 bytes - UID: 8 bytes |
| ATC256-MV410 | Memory: 224 bytes - UID: 8 bytes |
| ATC4096-MP311 | Memory: 4096 bytes - UID: 7 bytes |
| CTC4096-MP410 | Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes |
| CTC4096-MM410 | Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes |
| EM4233 | Memory: 256 bytes - UID: 8 bytes |
| ICODE SLI-S | Memory: 256 bytes - UID: 8 bytes |
| ICODE SLIX | Memory: 128 bytes - UID: 8 bytes |
| ICODE SLIX2 | Memory: 316 bytes - UID: 8 bytes |
| ICODE SLIX-S | Memory: 160 bytes - UID: 8 bytes |
| ICODE DNA | Memory: 252 bytes - UID: 8 bytes |
| MIM1024/PRIME | Memory: 1024 bytes |
| MIM256/PRIME | Memory: 256 bytes |
| NTAG210 | Memory: 48 bytes - UID: 7 bytes |
| NTAG212 | Memory: 128 bytes - UID: 7 bytes |
| NTAG213 | Memory: 144 bytes - UID: 7 bytes |
| NTAG215 | Memory: 504 bytes - UID: 7 bytes |
| NTAG216 | Memory: 888 bytes - UID: 7 bytes |
| NTAG213 TT TAG TAMPER | Memory: 144 bytes - UID: 7 bytes |
| NTAG413 DNA | Memory: 32/128 bytes - UID: 7 bytes |
| NTAG424 DNA | Memory: 216 bytes - UID: 7 bytes |
| ST25TV02K | Memory: 64 bytes - UID: 8 bytes |
| ST25TB512 | Memory: 64 bytes - UID: 8 bytes |
| ST25TB04K | Memory: 512 bytes - UID: 8 bytes |
| ST25TB02K | Memory: 256 bytes - UID: 8 bytes |
| TAG-IT 256 | Memory: 32 bytes - UID: 8 bytes |
| TAG-IT 2K | Memory: 256 bytes - UID: 8 bytes |
| MB89R118 | Memory: 2000 bytes - UID: 8 bytes |
UHF_European frequency (EU) 868 MHz - U.S. frequency (US) 920 MHz
| CHIP | DESCIZIONE |
| HIGGS 3 | Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes |
| HIGGS 3 US | Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes |
| HIGGS 4 | Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes |
| HIGGS 4 US | Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes |
| HIGGS 9 | Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes |
| HIGGS 9 US | Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes |
| UCODE 7 | Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes |
| UCODE 7 US | Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes |
| UCODE 8 | Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes |
| UCODE 8 US | Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes |
| UCODE 8 M | Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes
|
| UCODE 9 | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| UCODE 9 US | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| UCODE G2IL | Memory: 0 bytes - TID: 8 bytes - EPC: 16 bytes |
| UCODE G2IM | Memory: 80 bytes - TID: 12 bytes - EPC: 32 bytes |
| UCODE DNA | Memory: 3072 bytes - TID: 12 bytes - EPC: 56 bytes |
| UCODE CITY | Memory: 128 bytes - TID: 12 bytes - EPC: 28 bytes |
| UCODE TRACK | Memory: 32 bytes - TID: 12 bytes - EPC: 56 bytes |
| MONZA R5 | Memory: 0 bytes - TID: 16 bytes - EPC: 16 bytes |
| MONZA R6 | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| MONZA R6 US | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| MONZA R6A | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| MONZA R6B | Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes |
| MONZA R6P | Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA R6P US | Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA 4D | Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA 4D US | Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA 4E | Memory: 16 bytes - TID: 12 bytes - EPC: 62 bytes |
| MONZA 4QT | Memory: 64 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA M730 | Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes |
| MONZA M750 | Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes |
| KX2005XG-B | Memory: 164 bytes - UID: 24 bytes - EPC: 30 bytes |
| HIGGS - EC | Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes |
| HIGGS - EC US | Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes |
HF+UHF_European frequency (EU) 13.56 MHz + 868 MHz / U.S. frequency (US) 13.56 MHz + 920 MHz
| CHIP | DESCIZIONE |
| EM4423 | Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF)
|
| EM4423 US | Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF) |
| MONZA R6P + ICODE SLIX2 | Memory: 8 bytes (UHF) + 316 bytes (HF) - UID/TID: 12 bytes (UHF) + 8 bytes (HF) - EPC: 16 bytes (UHF) |
LF+HF_frequency 125 KHz + 13.56 MHz
| CHIP | DESCIZIONE |
| MIFARE CLASSIC 1K EV1 S50 + EM4100 | Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 1K EV1 S50 + EM4200 | Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 4K EV1 S70 + EM4200 | Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 1K EV1 S50 + T5567 | Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 4K EV1 S70 + T5567 | Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 1K EV1 S50 + 5555 | Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF) |
| MIFARE CLASSIC 4K EV1 S70 + 5555 | Memory: 4096 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF) |
| RF81 + EM4200 | Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF) |
| RF81 + T5567 | Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4 bytes(HF) + 8 bytes (LF)
|
| RF81 + 5555 | Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF) |
| MIFARE DESFIRE 4K EV3 + EM4200 | Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF) |
| MIFARE DESFIRE 8K EV3 + EM4200 | Memory: 8192 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF) |
| MIFARE DESFIRE 4K EV3 + ATA5577 | Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF) |
-

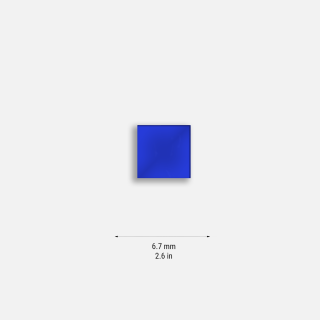

HT016 Hard tag
€0.00HT016 is an RFID hard tag made of 90% PCB, resistant to extremely high temperatures.
Square in shape, this tag measures 6.7 x 6.7 x 0.75 mm and weighs 0.4 grams. It can be applied by adhesive and embedded inside plastics.
It is suitable for the identification - also with NFC readers - of medical devices and instruments that need to be sterilised at high temperatures.
In fact, it peaks at 250°C for 24 hours! It is a two-colour tag - blue and black - in HF frequency with the ICODE SLIX and ST25TB02K chips.
Both logo customisation and numbering can be carried out using laser technology. -
LB031 RFID label
€0.00LB031 is a square RFID tag made of coated paper. It measures 25 x 25 mm and can be applied by adhesive to non-metallic surfaces.
Printing and numbering is done by offset and inkjet for colour or black-and-white prints, and by thermography for black-and-white only.
LB031 is a white NFC tag, with HF frequency and NTAG213 chip. -
WT006 RFID wet inlay
€0.00WT006 is a wet inlay made of PET, a flexible thermoplastic material that is resistant to cutting and thermal shock.
Rectangular in shape, it measures 86 x 46 mm and has an inlay of 75 x 45 mm. Transparent in colour, it can be applied to non-metallic surfaces by means of adhesive.
This wet inlay is an NFC tag available in the HF frequency, with the ICODE SLIX chip.
