Complete Chip Guide

Download the complete table

LF_frequency 125 KHz

CHIP DESCRIPTION
EM4100 or GK4100

Memory: 0 bytes - UID: 8 bytes
EM4102

Memory: 0 bytes - UID: 8 bytes
EM4200

Memory: 0 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
EM4550 or TITAN

Memory: 128 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
EM4305

Memory: 64 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
ATA5577 or T5567

Memory: 36 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
Q5 or 5555

Memory: 33 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
HITAG1

Memory: 256 bytes

HITAG2

Memory: 32 bytes
Standard ISO: ISO 11784 / 11785
HITAG S 2048

Memory: 256 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
HITAG S 256

Memory: 32 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
SIC279

Memory: 16 bytes/ 24 bytes
Standard ISO: ISO 11784 / 11785
S5777

Memory: Total 330-bit EEPROM: 10 blocks of (32 bits+ 1 lock bit), 1 × 32 bit configuration, 7× 32 bits user memory
Standard ISO: 64-bit unique ID based on ISO15963, supported protocols 11784-85
Resistence: > 100,000 Times
Retention: > 10 years



HF_frequency 13.56 MHz

CHIP DESCRIPTION
RF81

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
FM11RF08

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
RF005

Memory: 64 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
RF32

Memory: 4096 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50 - 7 bytes

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70

Memory: 4096 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT EV1-1

Memory: 48 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT EV1-2

Memory: 128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT C

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE DESFIRE EV1 2K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV1 4K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV1 8K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 4K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 8K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 8K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE LIGHT

Memory: 640 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE PLUS SE

Memory: 1024 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS X 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS X 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS EV2 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS EV2 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
ATC1024-MV110

Memory: 944 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ATC256-MV410

Memory: 224 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ATC4096-MP311

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
CTC4096-MP410

Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
CTC4096-MM410

Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes
Standard ISO: ISO 15693 - ISO 14443 A
Standard NFC: Not supported by most NFC devices
EM4233

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ICODE SLI-S

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE SLIX

Memory: 128 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE SLIX2

Memory: 316 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ICODE SLIX-S

Memory: 160 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE DNA

Memory: 252 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
MIM1024/PRIME

Memory: 1024 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
MIM256/PRIME

Memory: 256 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
NTAG210

Memory: 48 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG212

Memory: 128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Tipo 2 - compliant with the tag
NTAG213

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - complaint with the tag
NTAG215

Memory: 504 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG216

Memory: 888 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG213 TT TAG TAMPER

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG413 DNA

Memory: 32/128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
NTAG424 DNA

Memory: 216 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
ST25TV02K

Memory: 64 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Tipo 4 - compliant with the tag
ST25TB512

Memory: 64 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
ST25TB04K

Memory: 512 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
ST25TB02K

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
TAG-IT 256

Memory: 32 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
TAG-IT 2K

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
MB89R118

Memory: 2000 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices



UHF_European frequency (EU) 868 MHz - U.S. frequency (US) 920 MHz

CHIP DESCIZIONE
HIGGS 3

Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 3 US

Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 4

Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 4 US

Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 9

Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 9 US

Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
UCODE 7

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 7 US

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8

Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8 US

Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8 M

Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO:EPC Class 1 Gen 2
UCODE 9

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: EPC Gen 2 V2
UCODE 9 US

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: EPC Gen 2 V2
UCODE G2IL

Memory: 0 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE G2IM

Memory: 80 bytes - TID: 12 bytes - EPC: 32 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE DNA

Memory: 3072 bytes - TID: 12 bytes - EPC: 56 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
UCODE CITY

Memory: 128 bytes - TID: 12 bytes - EPC: 28 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
UCODE TRACK

Memory: 32 bytes - TID: 12 bytes - EPC: 56 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
MONZA R5

Memory: 0 bytes - TID: 16 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Gen 2
MONZA R6

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6 US

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6A

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6B

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6P

Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6P US

Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA 4D

Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4D US

Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4E

Memory: 16 bytes - TID: 12 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4QT

Memory: 64 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA M730

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA M750

Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
KX2005XG-B

Memory: 164 bytes - UID: 24 bytes - EPC: 30 bytes
ISO standard: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS - EC

Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V1.2.0
HIGGS - EC US

Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V1.2.0



HF+UHF_European frequency (EU) 13.56 MHz + 868 MHz / U.S. frequency (US) 13.56 MHz + 920 MHz

CHIP DESCIZIONE
EM4423

Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF)
Standard ISO: ISO 15693 + ISO 18000-63 / EPC Gen2 V2
Standard NFC: Type 5 - compliant with the tag
EM4423 US

Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF)
Standard ISO: ISO 15693 + ISO 18000-63 / EPC Gen2 V2
Standard NFC: Type 5 - compliant with the tag
MONZA R6P + ICODE SLIX2

Memory: 8 bytes (UHF) + 316 bytes (HF) - UID/TID: 12 bytes (UHF) + 8 bytes (HF) - EPC: 16 bytes (UHF)
Standard ISO: ISO 18000-63 / EPC Gen 2 V2 + ISO 15693
Standard NFC: Not supported by most NFC devices



LF+HF_frequency 125 KHz + 13.56 MHz

CHIP DESCIZIONE
MIFARE CLASSIC 1K EV1 S50 + EM4100

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50 + EM4200

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + EM4200

Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Tipo 2 - compliant with the tag
MIFARE CLASSIC 1K EV1 S50 + T5567

Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + T5567

Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Tipo 2 - compliant with the tag
MIFARE CLASSIC 1K EV1 S50 + 5555

Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + 5555

Memory: 4096 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Typo 2 - compliant with the tag
RF81 + EM4200

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
RF81 + T5567

Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4 bytes(HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
RF81 + 5555

Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE DESFIRE 4K EV3 + EM4200

Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE 8K EV3 + EM4200

Memory: 8192 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE 4K EV3 + ATA5577

Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag



Clear All

Items 49-53 of 53

Set Descending Direction
  1. partitalia discover LB032 RFID label LB032 RFID label discover LB032 RFID label

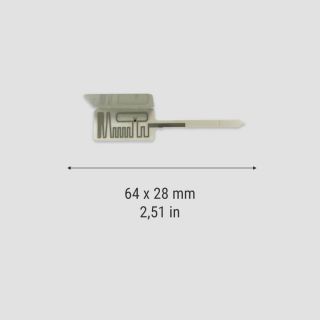

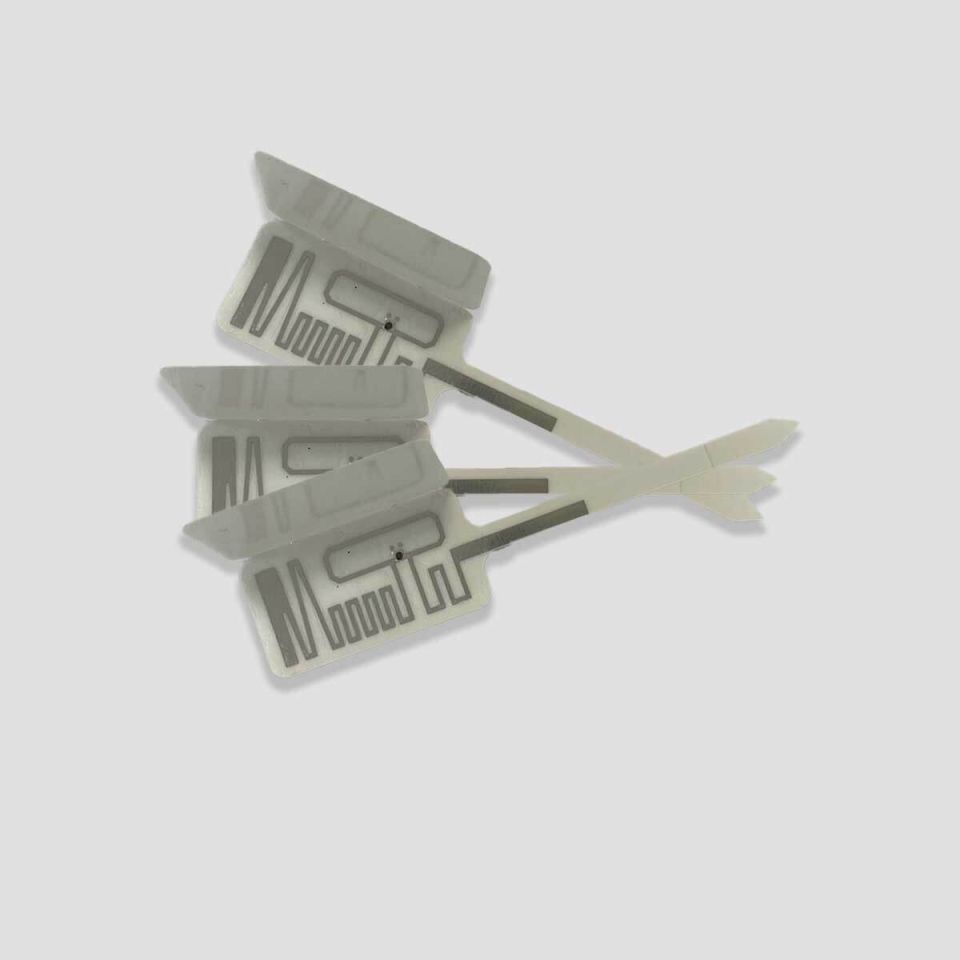

    LB032 RFID label

    €0.00

    LB032 is an adhesive RFID tag made of PET, rectangular in shape.
    It measures 64 x 28 mm and operates in the UHF frequency with the MONZA M730 chip. LB032 is applied by adhesive to non-metallic surfaces.
    Offset or inkjet printing is suitable for both colour and black-and-white prints, while thermography is used specifically for black-and-white prints.

    Available colors
    • WHITE WHITE
    View Product
  2. partitalia discover WT001 RFID wet inlay WT001 RFID wet inlay discover WT001 RFID wet inlay

    WT001 RFID wet inlay

    €0.00

    WT001 is a wet inlay made of PET, a flexible, cut- and weather-resistant thermoplastic material. Rectangular in shape, it measures 100 mm x 12 mm x 0.10 mm and can be applied to non-metal surfaces by means of an adhesive backing. Transparent in colour, it is available in UHF with the HIGGS 3 chip.

    Available colors
    • TRANSPARENT TRANSPARENT
    View Product
  3. partitalia discover WT002 RFID wet inlay WT002 RFID wet inlay discover WT002 RFID wet inlay

    WT002 RFID wet inlay

    €0.00

    WT002 is a wet inlay made of PET. It is flexible, cut- and weather-resistant.  Rectangular in shape, it measures 36 mm x 22 mm x 0.23 mm and can be applied to non-metal materials by means of a special adhesive. It has a transparent surface, and is available in UHF with the MONZA R5 chip.

    Available colors
    • TRANSPARENT TRANSPARENT
    View Product
  4. partitalia discover WT003 RFID wet inlay WT003 RFID wet inlay discover WT003 RFID wet inlay

    WT003 RFID wet inlay

    €0.00

    WT003 is a wet inlay made of PET, a material featuring flexibility and resistance to cuts and thermal shocks. Rectangular in shape, it is adhesive and flexible, andmeasures 64 mm x 6 mm.
    It has a transparent surface, is applied using an adhesive and is suitable for non-metal materials. WT003 is available in UHF with the UCODE 8 chip in both European and US frequencies.

    Available colors
    • TRANSPARENT TRANSPARENT
    View Product
  5. partitalia discover WT005 RFID wet inlay WT005 RFID wet inlay discover WT005 RFID wet inlay

    WT005 RFID wet inlay

    €0.00

    WT005 is a wet inlay made of PET, a type of thermoplastic material featuring flexibility, cut resistance and resistance to temperature changes.
    Square in shape, it is adhesive and flexible; it measures 48 mm x 48 mm, and has a transparent surface. Suitable for non-metal surfaces, it is available in UHF with a KX2005XG-B chip (compatible with MONZA 4QT).

    Available colors
    • TRANSPARENT TRANSPARENT
    View Product
Page
per page
Configure
Now Shopping by
  1. Frequency
    UHF
  2. Where to apply
    Metal surfaces
  3. Where to apply
    Non-metal surfaces
  4. Where to apply
    Metal and non-metal surfaces

Complete Chip Guide

close

Complete Chip Guide

Download the complete table

LF_frequency 125 KHz

CHIP DESCRIPTION
EM4100 or GK4100

Memory: 0 bytes - UID: 8 bytes
EM4102

Memory: 0 bytes - UID: 8 bytes
EM4200

Memory: 0 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
EM4550 or TITAN

Memory: 128 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
EM4305

Memory: 64 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
ATA5577 or T5567

Memory: 36 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
Q5 or 5555

Memory: 33 bytes - UID: 8 bytes
Standard ISO: ISO 11784 / 11785
HITAG1

Memory: 256 bytes

HITAG2

Memory: 32 bytes
Standard ISO: ISO 11784 / 11785
HITAG S 2048

Memory: 256 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
HITAG S 256

Memory: 32 bytes - UID: 4 bytes
Standard ISO: ISO 11784 / 11785
SIC279

Memory: 16 bytes/ 24 bytes
Standard ISO: ISO 11784 / 11785
S5777

Memory: Total 330-bit EEPROM: 10 blocks of (32 bits+ 1 lock bit), 1 × 32 bit configuration, 7× 32 bits user memory
Standard ISO: 64-bit unique ID based on ISO15963, supported protocols 11784-85
Resistence: > 100,000 Times
Retention: > 10 years



HF_frequency 13.56 MHz

CHIP DESCRIPTION
RF81

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
FM11RF08

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
RF005

Memory: 64 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
RF32

Memory: 4096 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50 - 7 bytes

Memory: 1024 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70

Memory: 4096 bytes - UID: 4 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT EV1-1

Memory: 48 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT EV1-2

Memory: 128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE ULTRALIGHT C

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
MIFARE DESFIRE EV1 2K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV1 4K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV1 8K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 4K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV2 8K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE EV3 8K

Memory: 8192 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE LIGHT

Memory: 640 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
MIFARE PLUS SE

Memory: 1024 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS X 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS X 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS EV2 2K

Memory: 2048 bytes - UID: 7 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE PLUS EV2 4K

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
ATC1024-MV110

Memory: 944 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ATC256-MV410

Memory: 224 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ATC4096-MP311

Memory: 4096 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
CTC4096-MP410

Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
CTC4096-MM410

Memory: 2984 bytes (advant) / 1002 bytes (prime) - UID: 4/7 bytes
Standard ISO: ISO 15693 - ISO 14443 A
Standard NFC: Not supported by most NFC devices
EM4233

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ICODE SLI-S

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE SLIX

Memory: 128 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE SLIX2

Memory: 316 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices
ICODE SLIX-S

Memory: 160 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
ICODE DNA

Memory: 252 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
MIM1024/PRIME

Memory: 1024 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
MIM256/PRIME

Memory: 256 bytes
Standard ISO: 14443 A
Standard NFC: Not supported by most NFC devices
NTAG210

Memory: 48 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG212

Memory: 128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Tipo 2 - compliant with the tag
NTAG213

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - complaint with the tag
NTAG215

Memory: 504 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG216

Memory: 888 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG213 TT TAG TAMPER

Memory: 144 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 2 - compliant with the tag
NTAG413 DNA

Memory: 32/128 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
NTAG424 DNA

Memory: 216 bytes - UID: 7 bytes
Standard ISO: ISO 14443 A
Standard NFC: Type 4 - compliant with the tag
ST25TV02K

Memory: 64 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Tipo 4 - compliant with the tag
ST25TB512

Memory: 64 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
ST25TB04K

Memory: 512 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
ST25TB02K

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 14443 B
Standard NFC: Type 4 - compliant with the tag
TAG-IT 256

Memory: 32 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
TAG-IT 2K

Memory: 256 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Type 5 - compliant with the tag
MB89R118

Memory: 2000 bytes - UID: 8 bytes
Standard ISO: ISO 15693
Standard NFC: Not supported by most NFC devices



UHF_European frequency (EU) 868 MHz - U.S. frequency (US) 920 MHz

CHIP DESCIZIONE
HIGGS 3

Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 3 US

Memory: 64 bytes - TID: 8 bytes - EPC: 60 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 4

Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 4 US

Memory: 16 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 9

Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS 9 US

Memory: 86 bytes - TID: 6 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-6C / EPC Class 1 Gen 2
UCODE 7

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 7 US

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8

Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8 US

Memory:0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE 8 M

Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO:EPC Class 1 Gen 2
UCODE 9

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: EPC Gen 2 V2
UCODE 9 US

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: EPC Gen 2 V2
UCODE G2IL

Memory: 0 bytes - TID: 8 bytes - EPC: 16 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE G2IM

Memory: 80 bytes - TID: 12 bytes - EPC: 32 bytes
Standard ISO: EPC Class 1 Gen 2
UCODE DNA

Memory: 3072 bytes - TID: 12 bytes - EPC: 56 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
UCODE CITY

Memory: 128 bytes - TID: 12 bytes - EPC: 28 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
UCODE TRACK

Memory: 32 bytes - TID: 12 bytes - EPC: 56 bytes
Standard ISO: ISO 29167-10 / EPC Gen 2 V2
MONZA R5

Memory: 0 bytes - TID: 16 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-6C / EPC Gen 2
MONZA R6

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6 US

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6A

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6B

Memory: 0 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6P

Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA R6P US

Memory: 8 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA 4D

Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4D US

Memory: 4 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4E

Memory: 16 bytes - TID: 12 bytes - EPC: 62 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA 4QT

Memory: 64 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Class 1 Gen 2
MONZA M730

Memory: 0 bytes - TID: 12 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
MONZA M750

Memory: 4 bytes - TID: 12 bytes - EPC: 12 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V2
KX2005XG-B

Memory: 164 bytes - UID: 24 bytes - EPC: 30 bytes
ISO standard: ISO 18000-6C / EPC Class 1 Gen 2
HIGGS - EC

Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V1.2.0
HIGGS - EC US

Memory: 16 bytes - TID: 6 bytes - EPC: 16 bytes
Standard ISO: ISO 18000-63 / EPC Gen 2 V1.2.0



HF+UHF_European frequency (EU) 13.56 MHz + 868 MHz / U.S. frequency (US) 13.56 MHz + 920 MHz

CHIP DESCIZIONE
EM4423

Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF)
Standard ISO: ISO 15693 + ISO 18000-63 / EPC Gen2 V2
Standard NFC: Type 5 - compliant with the tag
EM4423 US

Memory: 256 bytes - UID/TID: 8 bytes (HF) + 12 bytes (UHF) - EPC: 60 bytes (UHF)
Standard ISO: ISO 15693 + ISO 18000-63 / EPC Gen2 V2
Standard NFC: Type 5 - compliant with the tag
MONZA R6P + ICODE SLIX2

Memory: 8 bytes (UHF) + 316 bytes (HF) - UID/TID: 12 bytes (UHF) + 8 bytes (HF) - EPC: 16 bytes (UHF)
Standard ISO: ISO 18000-63 / EPC Gen 2 V2 + ISO 15693
Standard NFC: Not supported by most NFC devices



LF+HF_frequency 125 KHz + 13.56 MHz

CHIP DESCIZIONE
MIFARE CLASSIC 1K EV1 S50 + EM4100

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 1K EV1 S50 + EM4200

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + EM4200

Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Tipo 2 - compliant with the tag
MIFARE CLASSIC 1K EV1 S50 + T5567

Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + T5567

Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Tipo 2 - compliant with the tag
MIFARE CLASSIC 1K EV1 S50 + 5555

Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4/7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE CLASSIC 4K EV1 S70 + 5555

Memory: 4096 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Typo 2 - compliant with the tag
RF81 + EM4200

Memory: 1024 bytes (HF) + 0 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
RF81 + T5567

Memory: 1024 bytes (HF) + 36 bytes (LF) - UID: 4 bytes(HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
RF81 + 5555

Memory: 1024 bytes (HF) + 33 bytes (LF) - UID: 4 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Not supported by most NFC devices
MIFARE DESFIRE 4K EV3 + EM4200

Memory: 4096 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE 8K EV3 + EM4200

Memory: 8192 bytes (HF) + 0 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag
MIFARE DESFIRE 4K EV3 + ATA5577

Memory: 4096 bytes (HF) + 36 bytes (LF) - UID: 7 bytes (HF) + 8 bytes (LF)
Standard ISO: ISO 14443 A + ISO 11784 / 11785
Standard NFC: Type 4 - compliant with the tag



Clear All
Shopping Options
