LT008 RFID label
€0.00LT008 is an RFID tag composed of a fabric part and a silicone part. Rectangular in shape, it is sewn into the seam of the garment to be identified. Its dimensions are 65 x 16 x 2.7 mm, its colour is white and it is customizable with thermography. LT008 can withstand up to 200 washes and can tolerate: a temperature of 90°C for fifteen minutes, drying treatment up to 160°C for thirty minutes, and ironing up to 200°C for a maximum of ten seconds. Furthermore, if this tag is inserted in the finishing tunnel, it can tolerate up to 185°C for half an hour, and if it is placed in the industrial extractor, it can withstand a pressure of 60 Bar, equivalent to 600 N/cm².
Finally, the LT008 tag - available in UHF, with MONZA 4QT and MONZA 4E chips - has a reading distance of five metres when read by a fixed reader and two and a half metres when read by a handheld reader. -

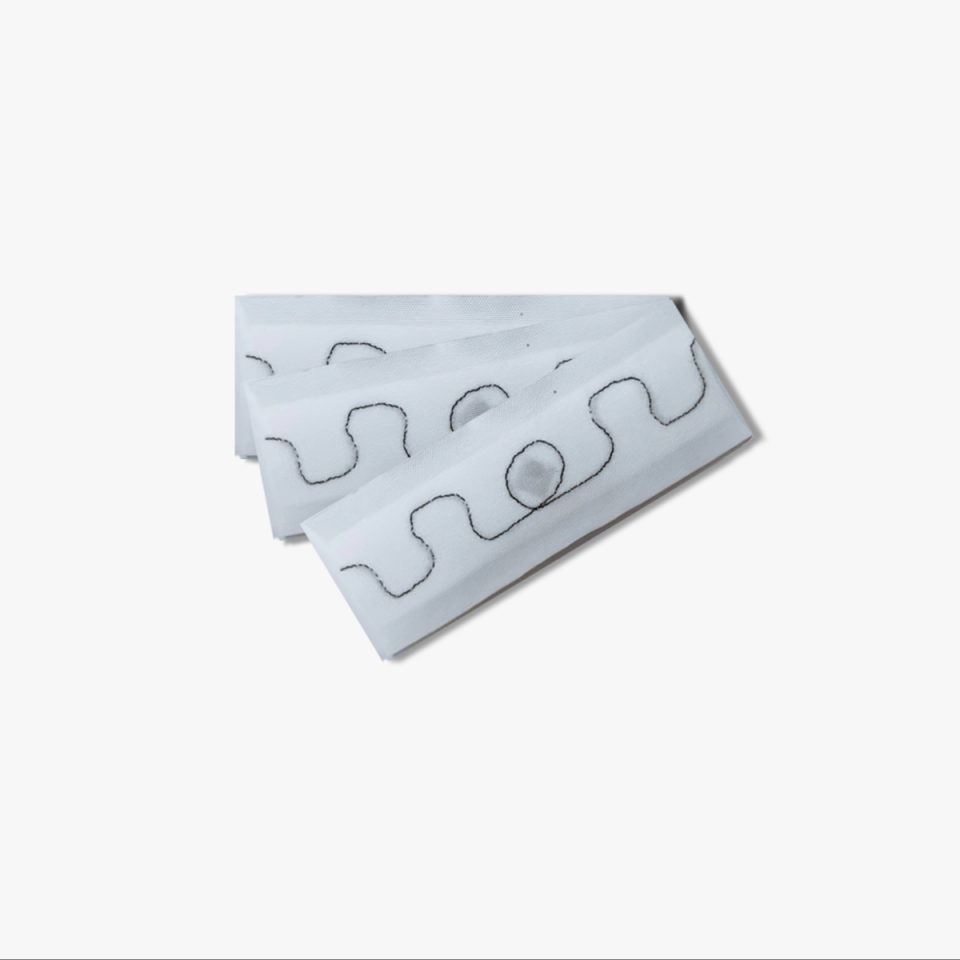

LT009 RFID label
€0.00The LT009 is a fabric and silicone RFID tag with a rectangular shape. It can be sewn into the seam of the garment to be identified. Measuring 68 x 26 mm, it's white and customizable through thermography.
The LT009 can withstand up to 200 washes and operates in the following conditions: washing at 90°C for 15 minutes, drying at up to 160°C for 30 minutes, ironing at 200°C for 10 seconds, finishing tunnel up to 185°C for 30 minutes, and industrial extractor up to 60 Bar (600 N/cm²). The UHF tag is available with MONZA 4QT and MONZA 4E chips and offers a read range of five metres with a fixed reader and two and a half metres with a handheld reader. -
LT010 RFID label
€0.00LT010 is an RFID tag made of fabric.
Rectangular in shape, it is applied by attaching it inside the seam of the identified garment.
Its dimensions are 68 x 20 x 1.6 mm, it is white and is customisable with thermographic printing.
The LT010 label withstands a maximum of 200 washes and, at an operational level, maintains its integrity if the following conditions are met: washing at 90°C for 15 minutes, drying at 160°C for half an hour, ironing at 200°C for 10 seconds, finishing tunnel at 185°C for 30 minutes and industrial extraction at 60 Bar, which is 600 N/cm2.
LT010 has the UHF frequency and has the MONZA 4QT chip.
It can be read by a fixed RFID reader up to a distance of four and a half metres and by a handheld RFID reader up to 2.5 metres. -
LT011 RFID label
€0.00LT011 is a fabric RFID tag. Rectangular in appearance, it can be applied by inserting it into the seam of the garment to be identified. It measures 55 x 12 x 1.6 mm, weighs 1.1 gram, is white and can be customised with thermography.
LT011 is a label designed for industrial laundries and is resistant to up to 200 washes. Operationally, it is washable at a temperature of 90°C for fifteen minutes, in the dryer it resists at 160°C for thirty minutes and is ironable at 200°C for ten seconds. Finally, it tolerates the finishing tunnel at up to 185°C for half an hour and the industrial extractor at up to 60 Bar, i.e. 600 N/cm2.
LT011 is available with two UHF chips: MONZA 4QT and UCODE 8.
Furthermore, if this tag is read by a fixed RFID reader it reaches a distance of two metres, while if it is identified by a handheld RFID it reaches one metre. -
LT012 RFID label
€0.00LT012 is a fabric RFID tag. Rectangular in shape, it is applied to the garment to be identified by heat-sealing at 200°C, with a pressure of 2 Kg/cm2 for 30 seconds.
Its dimensions measure 70 x 15 x 1.6 mm and its weight is equivalent to 1.3 grams. Available in white, the customisation of this label is done by thermographic printing technique.
The LT012 was created for industrial laundries and has specific features that make it ideal for all typical operations in this sector.
Its life cycle lasts up to 200 washes, during which it withstands a temperature of 90°C for fifteen minutes. Then, when subjected to drying it tolerates up to 160°C for half an hour and ironing is applicable up to 200°C for 10 seconds. Finally, it withstands up to 185°C for half an hour inside the finishing tunnel and withstands industrial stretching up to 60 Bar, i.e. 600 N/cm2.
The LT012 is available in the catalogue with the UHF chips: MONZA 4QT, UCODE 7, UCODE 8 and UCODE 9.
Furthermore, it can be read by a fixed RFID reader up to 5 metres, and by a handheld RFID reader up to a distance of two and a half metres. -
WT001 RFID wet inlay
€0.00WT001 is a wet inlay made of PET, a flexible, cut- and weather-resistant thermoplastic material. Rectangular in shape, it measures 100 mm x 12 mm x 0.10 mm and can be applied to non-metal surfaces by means of an adhesive backing. Transparent in colour, it is available in UHF with the HIGGS 3 chip.
-
WT002 RFID wet inlay
€0.00WT002 is a wet inlay made of PET. It is flexible, cut- and weather-resistant. Rectangular in shape, it measures 36 mm x 22 mm x 0.23 mm and can be applied to non-metal materials by means of a special adhesive. It has a transparent surface, and is available in UHF with the MONZA R5 chip.
-
WT003 RFID wet inlay
€0.00WT003 is a wet inlay made of PET, a material featuring flexibility and resistance to cuts and thermal shocks. Rectangular in shape, it is adhesive and flexible, andmeasures 64 mm x 6 mm.
It has a transparent surface, is applied using an adhesive and is suitable for non-metal materials. WT003 is available in UHF with the UCODE 8 chip in both European and US frequencies. -
WT005 RFID wet inlay
€0.00WT005 is a wet inlay made of PET, a type of thermoplastic material featuring flexibility, cut resistance and resistance to temperature changes.
Square in shape, it is adhesive and flexible; it measures 48 mm x 48 mm, and has a transparent surface. Suitable for non-metal surfaces, it is available in UHF with a KX2005XG-B chip (compatible with MONZA 4QT).
